Grooved Mechanical Tee

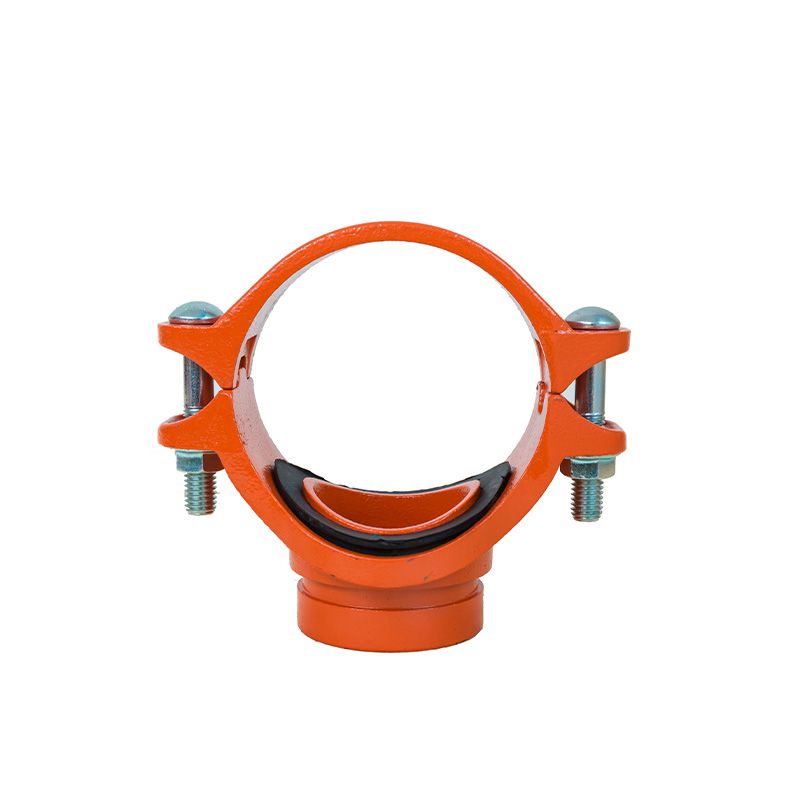

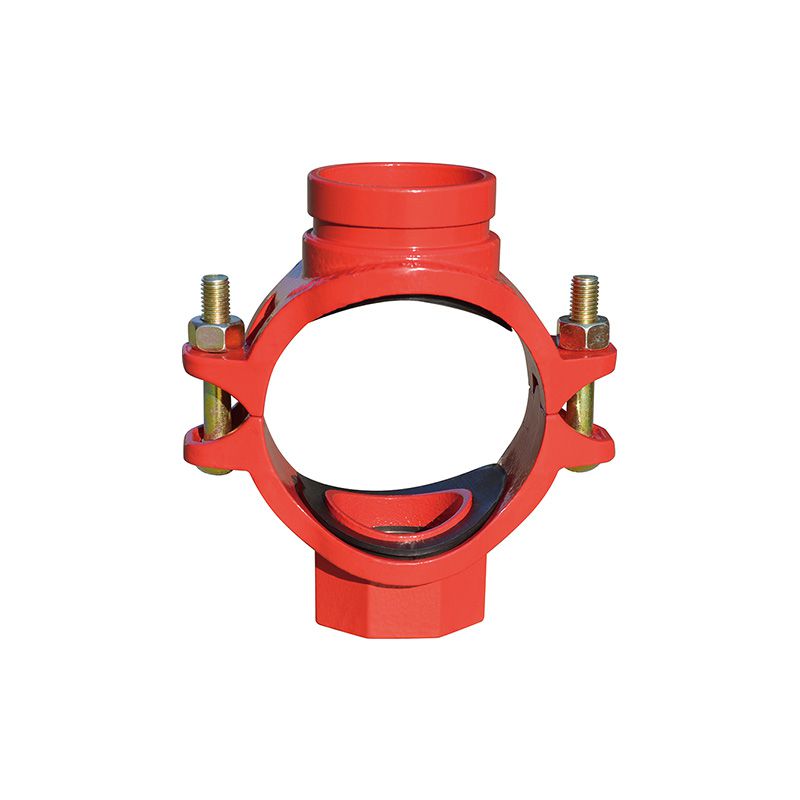

CNG grooved mechanical tees provide a practical solution for creating branch connections from a main pipe. The fitting is mounted around a correctly prepared hole in the run pipe, allowing a smaller branch line to be connected through a grooved outlet.

These ductile iron mechanical tees are used in fire protection, HVAC, water supply and industrial piping systems. Multiple combinations of main pipe size, outlet size, gasket material, pressure rating and surface finish are available for different project requirements.

Explore our complete range of mechanical tees or send us your pipe dimensions and application requirements for product selection support.

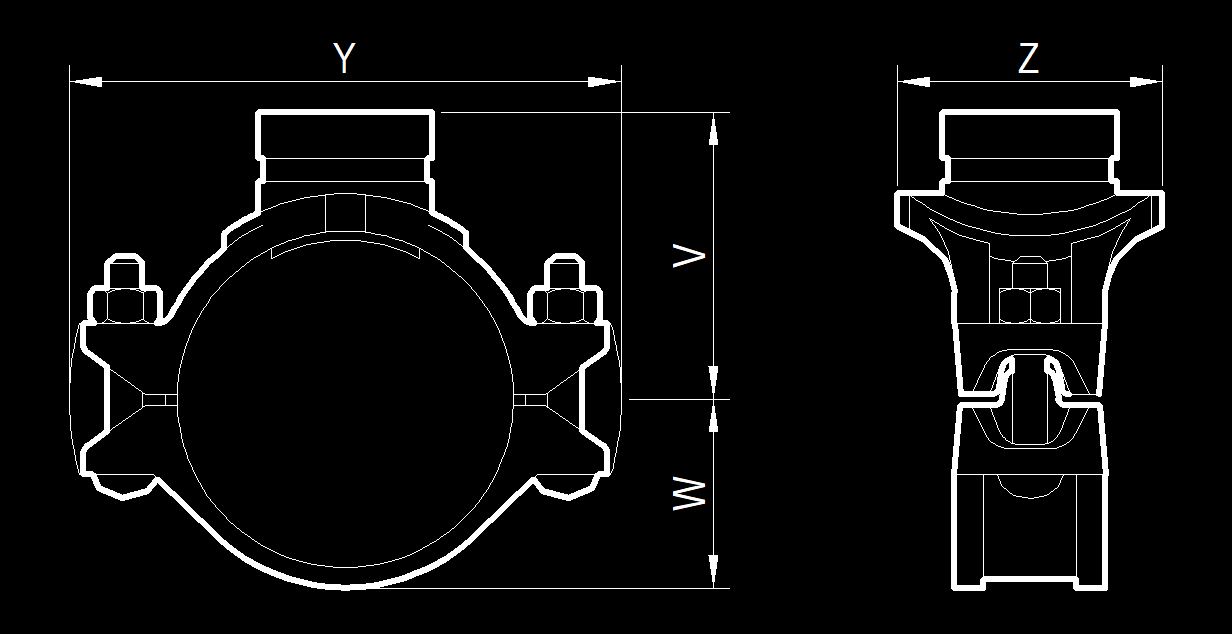

Grooved Mechanical Tee Specification

Applications of Grooved Mechanical Tees

Grooved mechanical tees can be used in different piping systems where a branch outlet is required from a main pipe.

Fire Sprinkler and Fire Protection Piping

A grooved mechanical tee can create a branch outlet from a sprinkler main or fire protection distribution pipe. The selected fitting must match the pipe outside diameter, outlet size, hole size, system pressure and required approval.

For projects requiring couplings, elbows, tees, reducers, end caps, flanges and mechanical outlets, explore CNG’s complete range of fire protection grooved pipe fittings.

You can also read our guide to mechanical tees for fire sprinkler systems for more information about product structure, outlet selection and installation considerations.

HVAC Piping Systems

Grooved mechanical tees can be used to create branch connections in compatible HVAC water piping and building mechanical systems.

Buyers should confirm the pipe material, operating temperature, working pressure, gasket compatibility and required surface finish before selecting the fitting.

Water Supply and Distribution

Mechanical branch tees can be used in compatible water supply and water distribution pipelines where a smaller branch must be connected to a larger run pipe.

EPDM gasket options are commonly considered for compatible water services, but the exact gasket grade and operating limits must be confirmed for the project.

Industrial Piping

Grooved mechanical tees are also used in compatible industrial utility water and process-support piping.

For industrial applications, provide the conveyed medium, operating temperature, working pressure and pipe specification so that the appropriate gasket, finish and product configuration can be reviewed.

Grooved Mechanical Tee vs. Reducing Tee

Both products create branch connections, but their installation methods and piping arrangements are different.

Use a Grooved Mechanical Tee When:

• A branch outlet is required from an existing run pipe

• The piping design permits a hole-cut mechanical outlet

• Removing a complete section of the main pipe is undesirable

• A suitable run-pipe and outlet-size combination is available

• The product meets the required pressure and approval conditions

Use a Grooved Reducing Tee When:

• A complete three-way fitting is required

• The piping system is being assembled from separate pipe sections

• The design specifies a conventional reducing tee

• The required branch configuration is unavailable as a mechanical outlet

• The project requires the flow path of a complete tee fitting

The final selection should be based on the piping layout, hydraulic requirements, working conditions and project specifications.

Browse our grooved pipe fittings for standard tees, reducers, elbows, crosses, end caps and related components.

Installation Considerations

Installation must follow the current CNG product instructions and the requirements of the project engineer or responsible authority.

Before installation:

1. Isolate, depressurize and drain the piping system.

2. Confirm that the mechanical tee matches the run pipe outside diameter.

3. Confirm the correct branch location and required hole diameter.

4. Prepare the hole using an appropriate hole-cutting tool.

5. Remove burrs, sharp edges, metal chips, dirt and scale.

6. Inspect the pipe surface around the hole for damage or deformation.

7. Confirm that the gasket is clean and suitable for the service.

8. Position the locating collar correctly inside the prepared hole.

9. Install the lower housing and tighten both sides evenly.

10. Inspect and test the completed connection according to the project requirements.

Do not install the fitting over a damaged pipe surface, severely corroded area or unsuitable weld seam without approval from the responsible engineer.

Bolt tightening requirements can vary by model and size. Use the current installation instructions supplied for the selected product rather than applying a general torque value.

Available Product and Project Documentation

Depending on the selected model and order requirements, CNG can provide available supporting documents such as:

• Product dimensional data

• Material information

• Pressure rating information

• Installation instructions

• Surface finish information

• Gasket options

• Available UL or FM documentation

• 3C or CE documentation where applicable

• Packing information

• Product selection support

Certificate status should always be verified against the exact product model and size being purchased.

Why Source Grooved Mechanical Tees from CNG?

CNG has manufactured grooved piping products since 2002. Our product range covers mechanical tees, grooved couplings, elbows, standard tees, reducers, crosses, end caps and flange adapters.

CNG supports project buyers, distributors and piping contractors with:

• Multiple main-pipe and branch-outlet combinations

• Ductile iron housings conforming to ASTM A536 Grade 65-45-12

• Different pressure rating options

• Multiple gasket material options

• Epoxy-coated, electrophoretic and galvanized surface options

• Model-specific technical document support

• Coordinated supply of related grooved piping products

• Export packing and order support

Product selection is based on actual project conditions instead of only a general product name. Include your pipe OD, outlet size, pressure and required approval when requesting a quotation.

Frequently Asked Questions

Can a grooved mechanical tee be used in a fire sprinkler system?

Yes, when the selected model, size, working pressure and approval status meet the fire protection project requirements. Request the applicable UL or FM documentation for the exact configuration before ordering.

Are all sizes UL Listed or FM Approved?

Not necessarily. Approval coverage may vary by model, size, pressure rating and product configuration. CNG should confirm the relevant certificate scope for the exact item being ordered.

What pressure ratings are available?

Available product configurations have rated pressure options from 300 to 500 PSI. The applicable rating must be confirmed according to the selected model and size.

Is the outlet size the same as the hole size?

Not always. The required hole diameter is determined by the fitting design and may differ from the nominal branch outlet size. Follow the hole-size value in the product table and current installation instructions.

How do I select the correct mechanical tee size?

Provide the main pipe nominal size, actual outside diameter, branch outlet size and required hole diameter. Also confirm the working pressure, pipe standard and required certification.

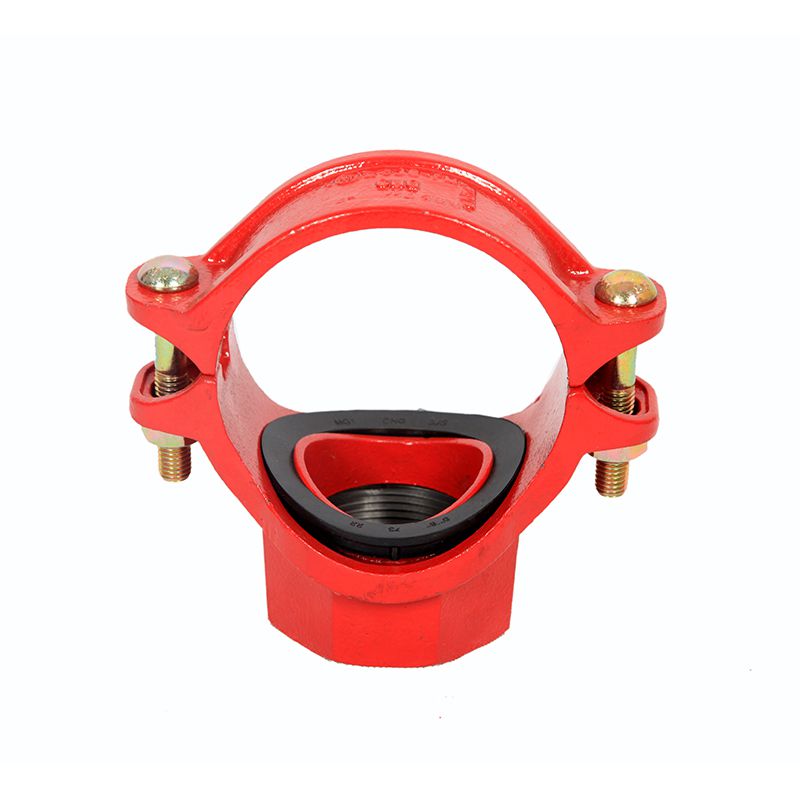

What is the difference between a grooved and threaded mechanical tee?

A grooved mechanical tee has a grooved branch outlet that connects to grooved piping through a coupling. A threaded mechanical tee has a female threaded outlet for threaded branch piping or components.

Which gasket material should I choose?

Gasket selection depends on the conveyed medium, operating temperature and system requirements. EPDM, nitrile and silicone rubber options are available, but compatibility must be confirmed for the actual service conditions.

Can a mechanical tee replace a reducing tee?

A mechanical tee can replace a conventional reducing tee in some permitted branch applications, but it is not a universal replacement. The piping layout, hydraulic requirements, pressure rating and project specifications must be considered.

Can CNG provide technical drawings and certificates?

Available drawings, product data and certification documents can be provided for the selected model. Include the exact size and approval requirements in your inquiry so the relevant documents can be confirmed.

Request a Quote for Grooved Mechanical Tees

Send CNG your main pipe OD, branch outlet size, pressure rating, gasket requirement, surface finish, certification requirement and order quantity.

Our team will review the required configuration and provide the available product data and quotation.

Send Your Grooved Mechanical Tee Inquiry
