· Certificate: FM/UL/3C/CE,etc.
· Standard: ANSI/UL 213C
· Housing Material: Ductile iron conforming to ASTM A-536, Grade 65-45-12.
· Type: Short/Standard/Long
· Rated pressure: 300~500PSI
· Surface: Hot dip galvanized/electrophoretic/epoxy powder painting
· Color: Variable colors for choice
Our 90 Elbow Wholesale offers high-quality pipe fittings designed to efficiently change the direction of fluid flow by 90 degrees. These elbows are compatible with various pipe materials and are widely used in residential, commercial, and industrial applications.
Our Grooved Pipe Fittings provide a fast and secure connection method, eliminating the need for welding. They feature durable materials, corrosion resistance, and a wide range of sizes to accommodate different pipe diameters. These fittings ensure leak-proof joints and are ideal for HVAC, fire protection, and water supply systems

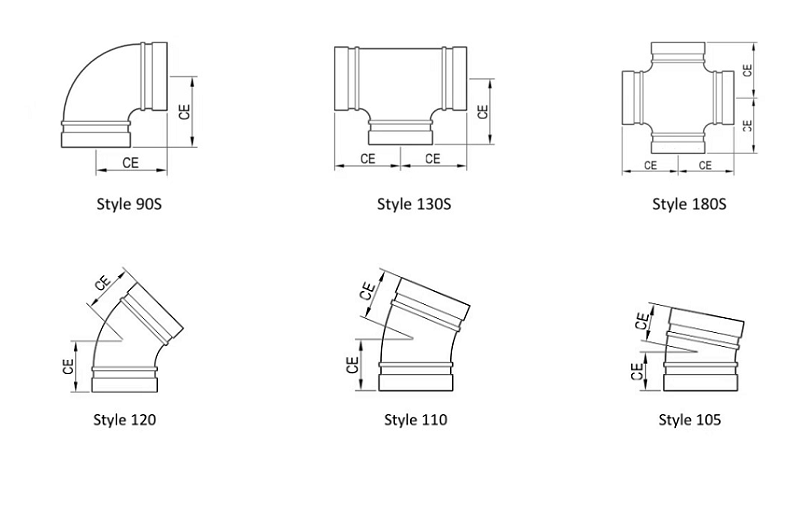

| SIZE | CE | |
| mm | mm | inch |
| 33 | 57 | 2.25 |
| 42 | 70 | 2.76 |
| 48 | 70 | 2.76 |
| 60 | 83 | 3.27 |
| 73 | 95 | 3.74 |
| 76 | 95 | 3.74 |
| 89 | 108 | 4.26 |
| 114 | 127 | 5.00 |
| 140 | 140 | 5.52 |
| 141 | 140 | 5.52 |
| 165 | 165 | 6.50 |
| 168 | 165 | 6.50 |
| 216 | 197 | 7.76 |
| 219 | 197 | 7.76 |
90°SHORT ELBOW Specification
| SIZE | CE | |
| mm | mm | inch |
| 60 | 70 | 2.76 |
| 73 | 76 | 2.99 |
| 76 | 76 | 2.99 |
| 89 | 86 | 3.39 |
| 114 | 102 | 4.02 |
| 140 | 124 | 4.89 |
| 141 | 124 | 4.89 |
| 165 | 140 | 5.52 |
| 168 | 140 | 5.52 |
| 216 | 173 | 6.82 |
| 219 | 173 | 6.82 |
CNG manufactures 90° elbows to enable smooth, reliable directional changes in pipelines. Suitable for fire protection systems, HVAC ducts, water supply, and industrial piping, these elbows maintain flow efficiency and pressure integrity.
Made from high-quality ductile iron, stainless steel, or carbon steel with corrosion-resistant coatings, CNG 90° elbows ensure long-term durability and leak-free performance. Precision grooves or threading guarantee compatibility with standard pipe fittings, reducing installation time and labor costs.
CNG supports bulk orders, OEM customization, and global distribution, making us a trusted supplier for distributors, EPC contractors, and large-scale engineering projects.
