· Certificate: FM/UL/3C/CE,etc.
· Standard: ANSI/UL 213C
· Housing Material: Ductile iron conforming to ASTM A-536, Grade 65-45-12.
· Type: Short/Standard/Long
· Rated pressure: 300~500PSI
· Surface: Hot dip galvanized/electrophoretic/epoxy powder painting
· Color: Variable colors for choice
Our 45 Elbow Wholesale offers precision-engineered 45-degree pipe fittings designed to smoothly redirect fluid flow while minimizing pressure loss. These elbows are compatible with Grooved Pipe Fittings, ensuring quick, secure, and leak-proof connections without welding. Made from durable materials like stainless steel or ductile iron, they resist corrosion and withstand high pressure, making them ideal for HVAC, plumbing, and industrial applications. Available in a range of sizes for versatile system integration, our wholesale options provide cost-effective solutions for large-scale projects.

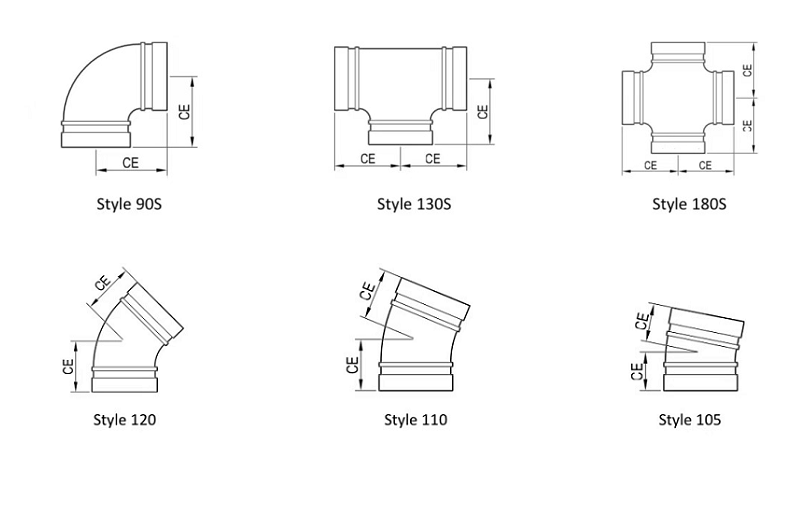

| SIZE | CE | |
| mm | mm | inch |
| 33 | 44 | 1.73 |
| 42 | 44 | 1.73 |
| 48 | 44 | 1.73 |
| 60 | 51 | 2.01 |
| 73 | 57 | 2.25 |
| 76 | 57 | 2.25 |
| 89 | 64 | 2.52 |
| 114 | 76 | 2.99 |
| 140 | 83 | 3.27 |
| 141 | 83 | 3.27 |
| 165 | 89 | 3.51 |
| 168 | 89 | 3.51 |
| 216 | 108 | 4.26 |
| 219 | 108 | 4.26 |
CNG manufactures 45° elbows to enable precise, controlled changes in pipeline direction. They are ideal for fire protection systems, HVAC pipelines, water supply, and industrial process lines where smooth flow and minimal pressure drop are required.
Produced from high-strength ductile iron, stainless steel, or carbon steel with corrosion-resistant finishes, these elbows provide long-lasting, leak-free performance. Precision grooves or threading ensure seamless compatibility with standard pipe fittings, reducing labor costs and installation time.
CNG supports bulk procurement, OEM customization, and worldwide distribution, making us a reliable partner for distributors, EPC contractors, and large engineering projects.
