How to Choose the Right Grooved Fittings for HVAC, Fire Protection, and Plumbing

Grooved fittings have become the preferred choice for modern piping systems in HVAC, fire protection, and plumbing due to their ease of installation, reliability, and flexibility. However, selecting the right grooved fittings for your specific application requires a careful evaluation of various factors, including system requirements, material compatibility, pressure ratings, and environmental conditions.

This comprehensive guide will walk you through the key considerations to ensure you choose the best grooved fittings for your project—optimizing performance, safety, and cost-efficiency.

1. Understand the Role of Grooved Fittings in Different Systems

Before selecting fittings, it’s essential to understand how grooved fittings function within various systems:

• HVAC Systems: Facilitate the transport of heating and cooling fluids, requiring fittings that can accommodate thermal expansion and vibration.

• Fire Protection Systems: Require highly reliable, leak-proof connections that meet strict safety and regulatory standards.

• Plumbing Systems: Typically involve water supply and drainage, demanding corrosion-resistant and durable fittings.

Each system has distinct performance demands, making the correct fitting selection critical to long-term success.

2. Key Factors to Consider When Selecting Grooved Fittings

A. Material Compatibility

Choose fittings made from materials compatible with the fluid and environment:

• Ductile Iron: Most commonly used in HVAC and fire protection systems; offers durability and cost-effectiveness.

• Stainless Steel: Ideal for corrosive environments or potable water systems.

• Carbon Steel: Used in heavy-duty industrial plumbing but requires anti-corrosion protection.

• Gasket Material:

• EPDM (Ethylene Propylene Diene Monomer): Suitable for water and HVAC fluids.

• Nitrile (Buna-N): Better suited for oil and fuel-based systems.




B. Pressure and Temperature Ratings

Ensure the fittings meet or exceed the system’s operational pressure and temperature requirements:

• HVAC and plumbing systems typically operate under moderate conditions.

• Fire protection systems may experience sudden pressure surges.

Common pressure ratings:

• Fire protection systems: Minimum 175 psi.

• Industrial HVAC systems: Up to 300 psi.

•


C. Size and Type of Fittings

Select the correct size and type based on pipe diameter and system layout:

Common grooved fitting types include:

• Elbows (for directional changes)

• Tees (for branching lines)

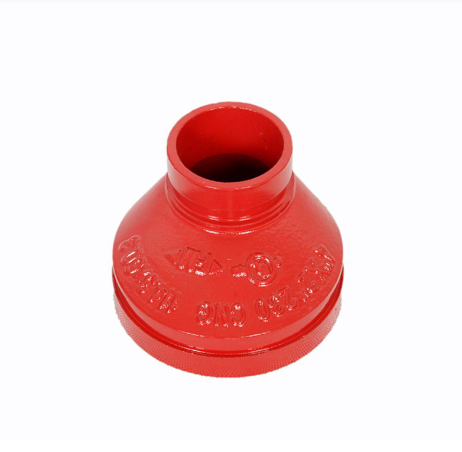

• Reducers (for diameter transitions)

• Couplings (rigid or flexible)

• Mechanical Tees (for branch connections)

Flexible couplings are ideal for HVAC systems to accommodate movement and vibration, while rigid couplings offer stable connections in fire protection systems.

D. Compliance and Certifications

Ensure fittings meet the required industry standards and certifications:

• Fire Protection Systems: Must comply with NFPA, UL, and FM standards.

• HVAC Systems: Often follow ASHRAE or ISO guidelines.

• Plumbing Systems: Must meet local plumbing codes for potable water or drainage applications.

Compliance ensures safety, regulatory approval, and insurance coverage.

3. Matching Fittings to Application Needs

4. Installation and Maintenance Considerations

Proper installation is essential for optimal performance and longevity:

• Ensure pipe ends are properly grooved or cut to match the fitting.

• Use manufacturer-approved lubricants on gaskets to avoid damage during installation.

• Follow specified torque values when tightening bolts to prevent leaks.

• Choose fittings that allow for easy disassembly for future maintenance and repairs.

5. Cost and Lifecycle Evaluation

While grooved fittings may have a higher upfront cost than traditional welded or threaded options, their faster installation time, lower labor costs, and reduced maintenance needs often result in a lower total cost of ownership.

Conclusion

Selecting the right grooved fittings for HVAC, fire protection, and plumbing systems requires a balanced approach that considers material compatibility, pressure and temperature ratings, system-specific requirements, and compliance with safety standards. When properly chosen, grooved fittings offer exceptional ease of installation, flexibility, and long-term reliability.
