HDPE Pipe Couplings: How to Select, Install, and Buy with Confidence

If you need fast, leak-tight, corrosion-resistant joints for polyethylene pipelines, HDPE Pipe Couplings are the simplest way to connect, repair, or transition pipes without welding. Choose electrofusion couplings for buried potable water and gas mains, mechanical compression couplings for quick repairs and temporary bypasses, and flanged/transition couplings when joining HDPE to steel, ductile iron, or PVC. Match coupling size to pipe OD and SDR (pressure class), confirm certifications (e.g., potable-water approvals), and follow calibrated installation steps. Done right, HDPE Pipe Couplings deliver long service life, low leakage rates, and minimal maintenance costs.

HDPE pipe couplings specifications

Procurement teams typically evaluate:

• Size & pipe standard: OD per ISO 4427/EN 12201/AWWA C906; match the exact OD (e.g., 110 mm, 160 mm, 225 mm; 4", 6", 8").

• SDR/pressure class: Ensure coupling rating ≥ pipe rating (e.g., SDR11 ≈ PN16; SDR17 ≈ PN10).

• Type: Electrofusion coupler, mechanical compression coupling, flanged adapter, repair coupling, transition (PE-to-metal/PVC), restraint coupling.

• Sealing system: EPDM/NBR gaskets, multi-lip seals, melt-fusion interface for electrofusion.

• Body material: PE100/PE100-RC (electrofusion), PP/PA bodies (mechanical), ductile iron or stainless for flanged/transition bodies; coating or passivation as needed.

• Fittings tolerance: Ovality and insertion depth allowances; sleeve length for axial pull-out resistance.

• Ratings & approvals: Potable water (NSF/ANSI/CAN 61, WRAS, KIWA), gas (where applicable), RoHS/REACH.

• Traceability & QA: Barcodes for electrofusion parameters, batch/heat numbers, factory ISO 9001, inspection reports.

• Accessories: Pipe stiffeners/liners (thin-wall), restraint rings, torque charts, barcode-programmed fusion parameters.

HDPE pipe couplings installation guide

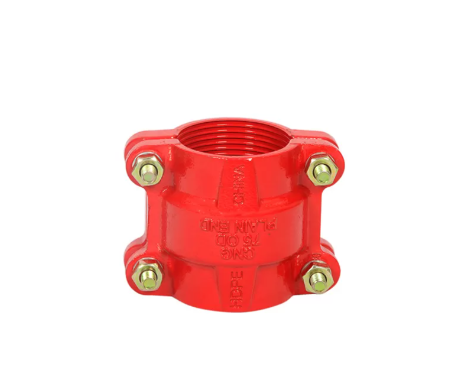

Mechanical (compression/repair)

Deburr and chamfer pipe ends; mark insertion depth.

1. Insert liners for thin-wall/large OD if specified.

2. Assemble per sequence; tighten evenly to the specified torque.

3. Pressure test after installation.

Electrofusion

1. Scrape 0.2–0.4 mm of pipe surface; clean with approved wipes.

2. Align and clamp to prevent movement; mark insertion depth.

3. Scan coupling barcode; fuse with calibrated control box.

4. Observe cooling time; do not depressurize or move during cooling.
   Common pitfalls: No scraping, poor alignment, under-torque on compression nuts, moving the joint before cool-down.

HDPE pipe couplings price list

What drives cost: OD/size, type (electrofusion > flanged/transition > compression), pressure rating, sleeve length, certifications, and coatings.

• Indicative patterns (not quotes): Small OD mechanical couplings are economical; electrofusion and large OD flanged/transition couplings scale quickly with size.

• TCO: Factor in labor (fusion equipment rental vs. wrench-tightening), training, failure risk, and reusability (compression styles can be reusable; electrofusion is permanent).
  RFQ tips: Provide pipe OD, SDR, medium (potable/gas/effluent), operating pressure/temperature, installation environment (buried, above-ground, UV, coastal), and delivery window.

HDPE pipe couplings suppliers near me

Use localized queries to shortlist distributors with in-stock sizes, fusion machine rentals, and on-site training. Ask for:

• Same-day OD/SDR availability and repair sleeves

• Fusion box compatibility (barcode standards)

• Emergency call-out and pressure-testing support

• Documentation packs (COC, potable-water approvals)

HDPE pipe joint fittings

“Joint fittings” often includes couplings plus elbows, tees, reducers, end caps, tapping saddles, flange adapters, and tees with integrated electrofusion sockets. If your BOM lists “joint fittings,” confirm whether the engineer expects mechanical or fusion joining to avoid mixed methods on the same line.

HDPE pipe connectors

“Connectors” is a buyer’s catch-all for transition needs: HDPE-to-steel (weld-neck/ductile iron adapters), HDPE-to-PVC (solvent-socket adapters), and restrained connectors for thrust areas. Verify: bolt circle, gasket type, dielectric isolation (to prevent galvanic corrosion), and restraint ratings.

HDPE pipe couplings vs PVC couplings

• HDPE advantages: Impact resistance, flexibility, excellent fatigue, trenchless friendliness, fusion-welded leak-tightness.

• PVC advantages: Stiffness (deflection control), solvent-weld simplicity, lower material cost at small diameters.
  Choose HDPE couplings for dynamic soils, cold climates, trenchless pulls, or when long coils are used. PVC couplings fit rigid, above-ground or building services with solvent-weld specs.

HDPE pipe couplings vs steel couplings

• Steel/DI couplings (mechanical sleeves) offer very high mechanical strength and wide tolerance take-up; they’re common for transitions and repairs across mixed materials.

• HDPE-body couplings minimize galvanic issues, match pipe flexibility, and are lighter.
  For buried corrosion-prone areas, favor PE-body/electrofusion; for plant rooms and high-load thrust zones, flanged ductile-iron systems may be preferable with proper coatings.

Electrofusion HDPE couplings

Best for permanent, buried mains or where open-flame butt fusion is impractical.

• Key features: Embedded resistance wires, barcode programs, cold-zone indicators, melt witness beads.

• Success factors: Fresh scraping, clean dry pipe, rigid clamping, stable power supply, adherence to cool-down times.

• When to choose: Confined digs, service connections, repairs, and tee installations without long pipe “stringing” room.

Large diameter HDPE pipe couplings

For OD ≥ 400 mm:

• Prefer long-sleeve electrofusion or flanged adapters with dismantling joints for alignment tolerance.

• Plan for lifting lugs, heat input control, staged fusions, and extended cool-downs.

• Check ovality and roundness; consider re-rounding clamps and pipe liners for SDR17/SDR21.

HDPE pipe couplings suppliers in Singapore

When sourcing in Singapore/SEA, look for:

• Stock of metric ODs (110–630 mm) and PN10/PN16 classes

• Potable-water approvals recognized by PUB or regional utilities

• On-site fusion training and rental fleets

• Marine/coastal corrosion know-how (stainless fasteners, protective wraps)

Best HDPE pipe couplings manufacturer in China

Shortlist manufacturers that provide:

• Full ISO 9001 QA, third-party certifications (NSF/WRAS/KIWA where needed)

• Material traceability and batch fusion parameter records

• PE100/PE100-RC grades, wide size ranges, and custom transitions

• Export readiness: bilingual docs, standard pallets/crating, Incoterms clarity, fast MOQ tooling for specials

HDPE pipe couplings for mining trucks water lines

In mining operations, couplings serve dust-suppression sprays, haul-road hydration lines, pit dewatering, and plant utility water:

• Prefer mechanical repair couplings for rapid fixes under harsh, muddy conditions.

• Use electrofusion for permanent buried laterals to hydrants/sprays.

• Specify UV-stable components, abrasion-resistant gaskets, and restraints near pumps/valves to handle surge.

HDPE pipe couplings for sewage treatment

Wastewater brings chemicals, H₂S, and grit:

• Select EPDM or FKM gaskets per chemical exposure; verify temperature range.

• Favor electrofusion for buried gravity/pressure laterals; use flanged transitions at equipment skids and valve galleries.

• Include thrust restraint near bends, pumps, and rising mains; require leak/pressure testing and CCTV acceptance for gravity lines.

Quick Buyer’s Checklist

• Pipe OD & SDR (pressure class)

• Coupling type (electrofusion/mechanical/flanged/transition)

• Medium & approvals (potable, wastewater, gas)

• Environment (buried/UV/coastal/chemical)

• Restraint needs & thrust calculations

• Documentation (COC, test reports, barcode logs)

• Install resources (trained crew, fusion boxes, clamps)

• Delivery date, MOQ, and spares (repair sleeves, liners)

Bottom line: Match coupling type to application, rating to pipe SDR and pressure, and installation method to your crew and site constraints. With the right selection and disciplined installation, HDPE Pipe Couplings provide durable, leak-tight performance across water, wastewater, industrial, and mining projects.
