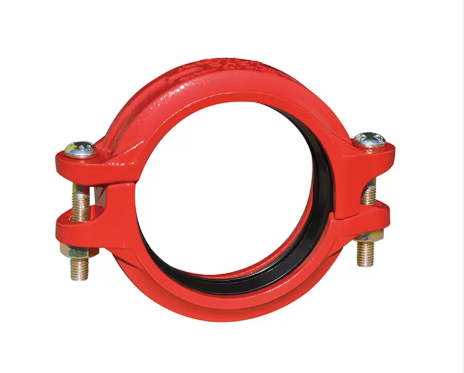

Angel Pad Rigid Coupling: A Buyer’s Guide to Fast Selection, Correct Installation, and Reliable Operation

If you need a zero-backlash, high-precision way to connect two shafts, choose an Angel Pad Rigid Coupling when your system can maintain excellent alignment. In short: an Angel Pad Rigid Coupling transmits torque without elasticity, delivers repeatable positioning, and eliminates wind-up. Select the right bore/keyway/length, verify concentricity and face squareness, install with proper alignment, and you’ll get long service life with minimal maintenance.

What Is an Angel Pad Rigid Coupling?

A rigid coupling is a solid mechanical connector that permanently joins two coaxial shafts so they act as one. Angel Pad Rigid Couplings have no flex elements; they do not accommodate misalignment. The payoff is zero backlash, high torsional stiffness, and accurate shaft-to-shaft positioning—ideal for metrology axes, precision conveyors, pumps with tight tolerances, and synchronous drive trains.

Angel Pad Rigid Coupling Specifications (What to Look For)

Procurement teams and engineers typically evaluate:

• Bore size & tolerance: Match shaft diameters (e.g., metric H7 bores) and h6/h7 shaft fits.

• Keyway options: Metric/imperial standards; specify width/depth and key fit if torque is high.

• Outer diameter (OD) & length (L): Drives available space, inertia, and shaft engagement depth.

• Clamping method: One-piece or two-piece clamp, split-hub, or set-screw. Clamp styles give better concentricity and reusability.

• Runout & concentricity: Tight TIR (total indicated runout) improves balance and bearing life.

• Material: Aluminum (lightweight), carbon steel (high strength), stainless steel (corrosion resistant).

• Surface finish & treatment: Anodizing, black oxide, passivation, phosphate, or nickel plating.

• Balancing: For higher RPM; specify balance grade if needed.

• Operating limits: Rated torque, max speed (RPM), temperature range.

• Standards & QA: ISO 9001 plant, material certs (EN/ASTM), RoHS/REACH compliance, PPAP on request.

Tip: If torque is high, let the key carry torque and the coupling provide concentric clamping; if no keyway, upsize the coupling or use higher-friction hub finishes.

Angel Pad Rigid Coupling Installation Guide (Step-by-Step)

1. Prep & Inspect: Deburr shafts, clean bores and keyways; verify bore/shaft fit and runout tolerances.

2. Align Shafts: Use dial indicators or a laser. Target near-zero angular and parallel misalignment; rigid couplings do not forgive errors.

3. Fit Keys (if used): Install keys to standard length; ensure no protrusion.

4. Mount the Coupling: Slide onto the first shaft; for split-hub styles, open evenly—don’t pry.

5. Positioning: Ensure equal shaft engagement from both sides (usually 50/50 with a visible gap if the design requires).

6. Tighten Sequence: Torque clamp screws in a star or cross pattern to spec; use a calibrated wrench and thread-locker if recommended.

7. Verification: Check TIR and axial alignment again after tightening.

8. Run-In Check: Start at low RPM, listen for vibration, recheck fasteners after initial thermal cycle.

Avoid: Forcing the coupling to “pull” shafts into alignment; it will overload bearings and shorten life.

Uses and Applications (What Is It Used For?)

• Precision motion: Gantry axes, pick-and-place, indexing tables (zero backlash).

• Pumps & compressors: Where alignment is controlled (skid-mounted, machined bases).

• Packaging & printing: Synchronous rolls and timing assemblies.

• Metrology/automation: Encoders, lead screws, test rigs.

• General power transmission: When shafts are short, well-supported, and coaxial.

Pricing & Cost Factors

• Unit price drivers: Material (stainless > steel > aluminum), size (bore/OD/length), balancing, surface treatment, and tolerance class.

• Machining options: Custom bores/keyways, special threads, tight TIR increase CNC time.

• MOQs & lead time: Standard sizes ship quickly; custom bore/keyway adds days to weeks.

• Total cost of ownership: Rigid couplings have negligible maintenance if alignment is correct; misalignment costs show up later in bearings and seals.

RFQ hint: Provide shaft diameters/tolerances, keyway spec, target RPM/torque, environment (temperature/corrosion), and space constraints.

Angel Pad Rigid Coupling vs. Flexible Coupling (When to Choose Which)

• Rigid: Zero backlash, highest torsional stiffness, best for precision positioning; requires excellent alignment and short shaft spans.

• Flexible (beam, bellows, elastomeric): Absorbs misalignment and vibration; slight compliance introduces micro-backlash or wind-up.
  Rule of thumb: If alignment can be held to near-zero and accuracy is king, choose rigid; otherwise select a flexible alternative.

Angel Pad Rigid Coupling vs. Flange Coupling

• Rigid sleeve/split-hub: Compact, easy to install, great concentricity.

• Flange coupling: Two flanged hubs bolted together; heavier, robust, common in larger shafts and industrial power transmission.
  Choose flange styles when you need bolt-up serviceability on large diameters; choose rigid sleeves/split-hubs for compact precision assemblies.

Material Options: Aluminum, Steel, and Stainless

• Aluminum: Light, good for high-speed, low-torque, and inertia-sensitive axes; anodizing adds wear resistance.

• Carbon steel: Higher torque capacity, economical; black oxide for mild corrosion resistance.

• Stainless (304/316): Corrosion resistance for food, chemical, marine; slightly heavier; passivated finish preferred.

Environmental note: Specify stainless and sealed fasteners for washdown or coastal installations.

Manufacturers, Quality, and Sourcing Considerations

• Supplier vetting: ISO 9001 certification, traceable material heats, inspection reports (TIR, bore gauge data), and torque test evidence.

• Customization depth: Ability to machine odd bores (D-shape, spline), special keyways, anti-pullout features, and balance to spec.

• Packaging & logistics: Rust-preventive wrap, hub protection caps, clear lot labeling; confirm Incoterms and export docs.

Regional Sourcing: Suppliers in Singapore (and How to Localize Your Search)

If you’re buying in or shipping to Southeast Asia, include “Angel Pad Rigid Coupling supplier in Singapore” or “SEA distributor” in your RFI to surface regional inventory, shorter lead times, and on-site support for alignment and installation training.

“Near Me” Queries and Distributor Engagement

“Angel Pad Rigid Coupling distributor near me” typically yields local stockists. Ask for:

• Same-day bore/keyway machining availability

• On-site alignment verification

• Spare fastener kits and recommended torque charts

• Emergency after-hours fulfillment policies

Do Not Confuse With Belleville Springs (How They Relate)

Belleville (disc) springs are elastic force elements, not couplings. They may appear in bolt preload stacks used to maintain clamp force on coupling flanges or mounting bases. They do not transmit shaft torque like a rigid coupling. If your application cites “Belleville vs. coupling,” you’re likely comparing a preload accessory to the torque-carrying connector.

Industry Spotlight: Mining Trucks, Heavy Equipment, and Harsh Duty

In mining haul trucks and auxiliary equipment:

• Use steel or stainless couplings with robust clamp hubs and keyed bores.

• Specify shock-load margins and verify baseplate flatness; rigid couplings demand machined pedestals.

• Add dust seals and corrosion-resistant finishes; consider captive hardware for field service.

• For traction motors or pump drives, validate thermal expansion effects on shaft fits.

Selection Workflow (Fast Checklist)

1. Shaft diameters & tolerances (include keyway standard).

2. Required torque & peak/overload factors; target RPM.

3. Alignment capability of your machine base (prove with TIR).

4. Material & environment (temperature, washdown, corrosion).

5. Envelope (OD × L) and service access.

6. Balance requirement (if > high RPM or sensitive vibration).

7. Compliance & QA (RoHS/REACH, certs, test reports).

8. Delivery window and MOQ.

FAQ

Q1: Can a rigid coupling fix minor misalignment?
No—use flexible couplings for misalignment. Rigid types enforce alignment.

Q2: Set-screw or clamp hub?
Clamp hubs offer better concentricity, shaft protection, and repeatability; set-screws are compact but can mar shafts.

Q3: How tight should I torque the screws?
Follow the manufacturer’s torque table for the specific screw size/grade and lubricant condition.

Q4: Do I need lubrication?
Rigid couplings are dry; no lubricant required unless specified for anti-seize during assembly.

Q5: When should I re-inspect?
After first thermal cycle/load test; then at scheduled PM intervals (check fastener torque and runout).

Troubleshooting & Preventive Tips

• Early bearing failures → Check misalignment and hub runout; verify base flatness.

• Vibration at speed → Balance the assembly; inspect shaft straightness and coupling TIR.

• Shaft fretting → Undersized bores or insufficient clamp torque; confirm fit and fastener spec.

• Fastener loosening → Use proper torque sequence and thread-locker; consider Belleville washers for preload stability.

Ready-to-Send RFQ Template

• Part: Angel Pad Rigid Coupling, split-hub, two-piece

• Qty & delivery: [e.g., 50 units, 3 weeks]

• Bore 1 / Bore 2: [mm/in, tolerance]

• Keyway: [standard, width × depth]

• OD × Length: [mm/in]

• Material & finish: [e.g., 316 SS, passivated]

• TIR requirement: [e.g., ≤0.02 mm]

• Max RPM & torque: [values + safety factor]

• Balance: [grade if needed]

• Environment: [temp, corrosion, washdown]

• Docs: [material certs, inspection report, RoHS/REACH]

• Others: [packaging, marking, Incoterms]

Bottom Line

Choose Angel Pad Rigid Coupling when you need uncompromising torsional stiffness and zero backlash—and when your installation can maintain precise alignment. Specify bores/keyways accurately, clamp and torque in sequence, verify TIR, and you’ll achieve smooth, repeatable power transmission with long component life.
